E9G06:On the Smith chart shown in Figure E9-3, what is the name for the large outer circle on which the reactance arcs terminate?

E9G06E9G

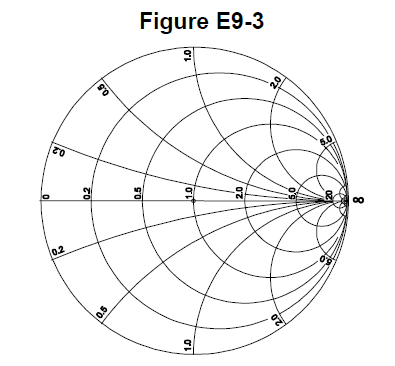

On the Smith chart shown in Figure E9-3, what is the name for the large outer circle on which the reactance arcs terminate?

Official figure for question E9G06

Direct answer summary (2024-2028 NCVEC pool)

The official correct answer for E9G06 is Reactance axis.

The key fact is Reactance axis. Match that fact to the exact condition in the question; the other choices describe a different rule, band, component, or operating situation.
