E9B04:What is the front-to-back ratio of the radiation pattern shown in Figure E9-2?

E9B04E9B

What is the front-to-back ratio of the radiation pattern shown in Figure E9-2?

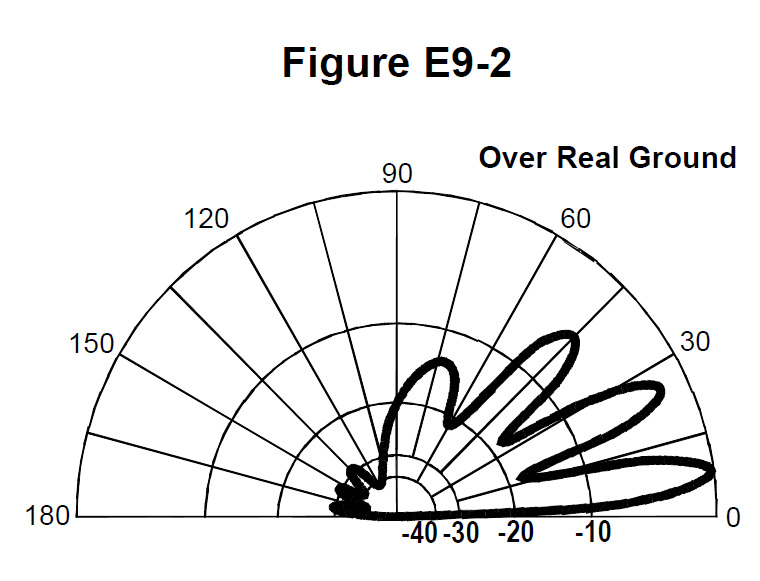

Official figure for question E9B04

Direct answer summary (2024-2028 NCVEC pool)

The official correct answer for E9B04 is 28 dB.

The key fact is 28 dB. Match that fact to the exact condition in the question; the other choices describe a different rule, band, component, or operating situation.
