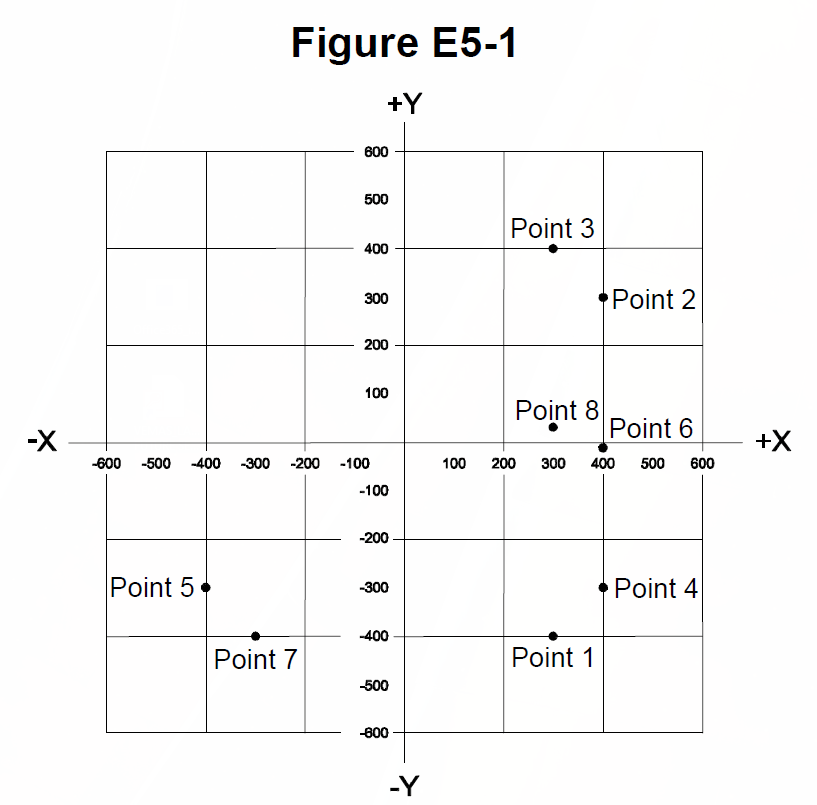

Which point on Figure E5-1 best represents the impedance of a series circuit consisting of a 400-ohm resistor and a 38-picofarad capacitor at 14 MHz?
E5C10:Which point on Figure E5-1 best represents the impedance of a series circuit consisting of a 400-ohm resistor and a 38-picofarad capacitor at 14 MHz?
Direct answer summary (2024-2028 NCVEC pool)
The official correct answer for E5C10 is Point 4.
The key fact is Point 4. Match that fact to the exact condition in the question; the other choices describe a different rule, band, component, or operating situation.
